Designed for Faster Installs and Reduced Downtime
In demanding hydraulic environments, easier routing and lighter assemblies translate directly to faster installs, improved ergonomics, and reduced machine mass. The MXT™ hose range achieves this by providing up to 40% lower force to bend for faster, more ergonomic installation, and up to 30% lighter weight for easier handling and potential overall equipment weight reduction while maintaining durability and long service life.
Performance where it matters most
Up to 40% lower force to bend supports tighter routing and easier installation in abrasive environments common to mining, construction, and quarrying.
Up to 30% lighter weight improves handling efficiency and can help reduce total system mass without sacrificing pressure capability or durability.
Tested to 3X impulse criteria (600,000 cycles).
Fulfills the construction and testing requirements of TRG 41and RS 23.
Built lighter, built tougher
Designed with high performance wire braid reinforcement; black, oil resistant synthetic rubber tube; abrasion and ozone resistant cover.
Meets or exceeds SAE 100R16 & 100R17* dimensions and performance, SAE 100R2 &100R19* performance and meets EN 853 2SN & EN 857 2SC performance (*Applies only to sizes up to and including -12 for SAE 100R17 and -08 for SAE 100R19).
Temperature range: -40°C to +100°C.
Compatible with Gates MegaCrimp™ and GlobalSpiral™* couplings (*Applies to sizes -06 to -16).

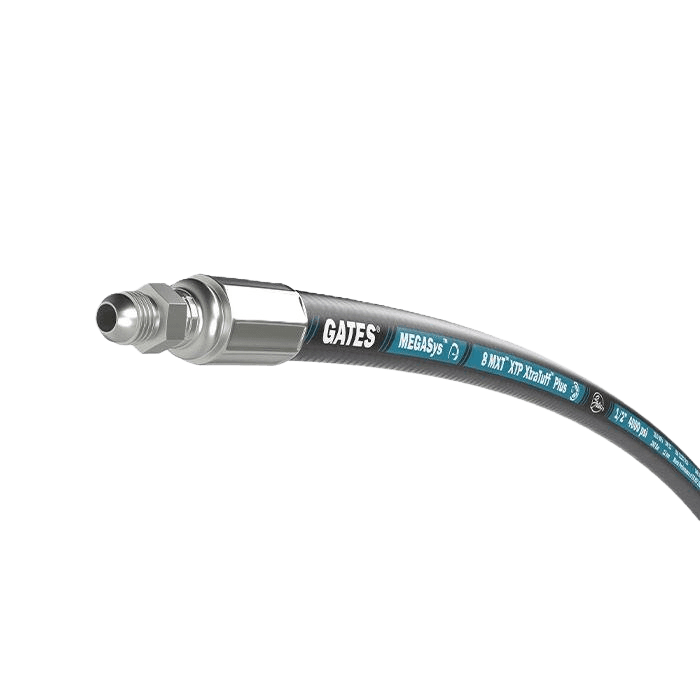

XtraTuff™ Plus cover Tough protection, easy handling
Optimising performance and reliability through increased abrasion and ozone resistance in the harshest environments.
25X more abrasion resistant than standard rubber covers for extended hose life in harsh conditions.
Enhanced ozone resistance.
Does not impact hose flexibility.
MSHA certified.

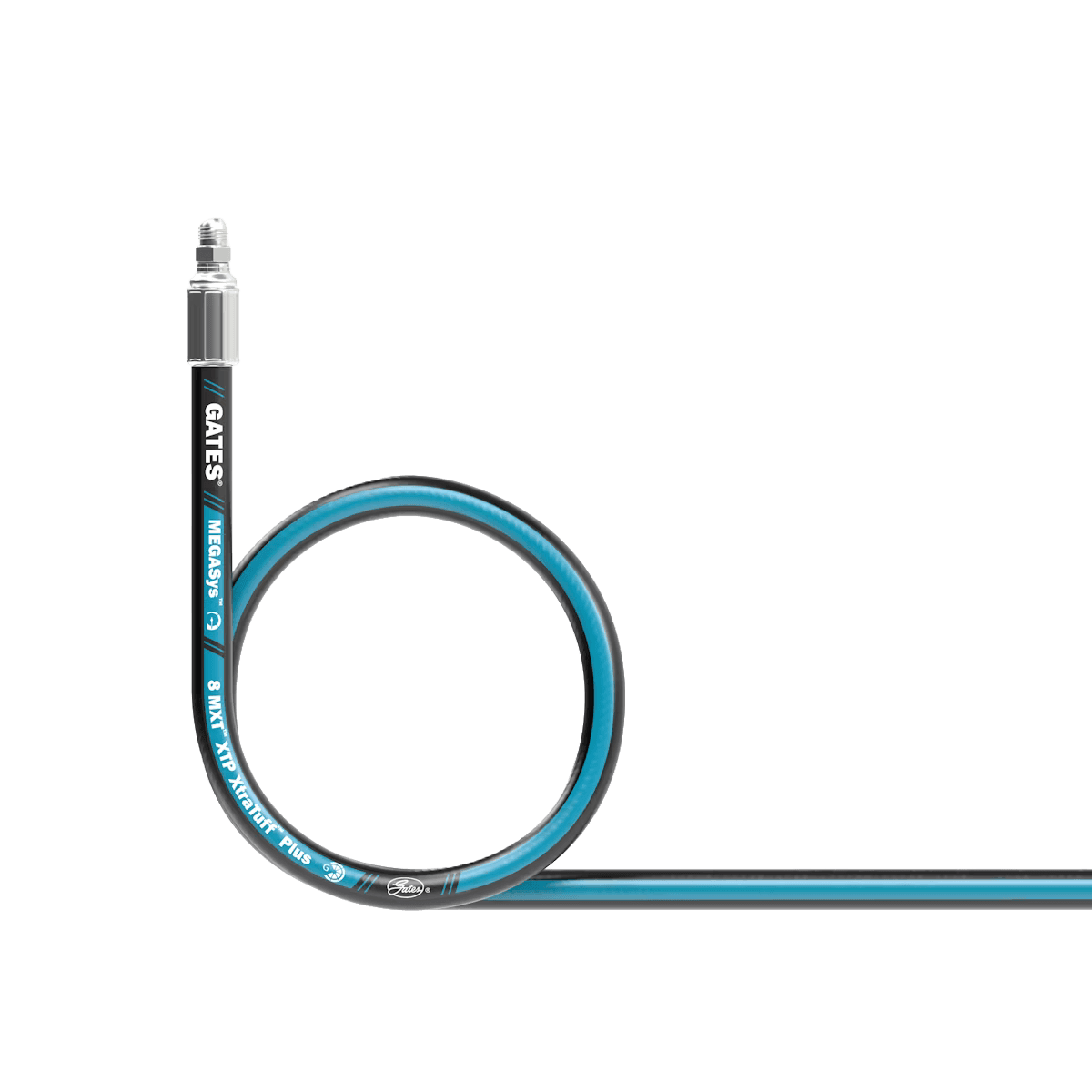

Flexibility that simplifies installation

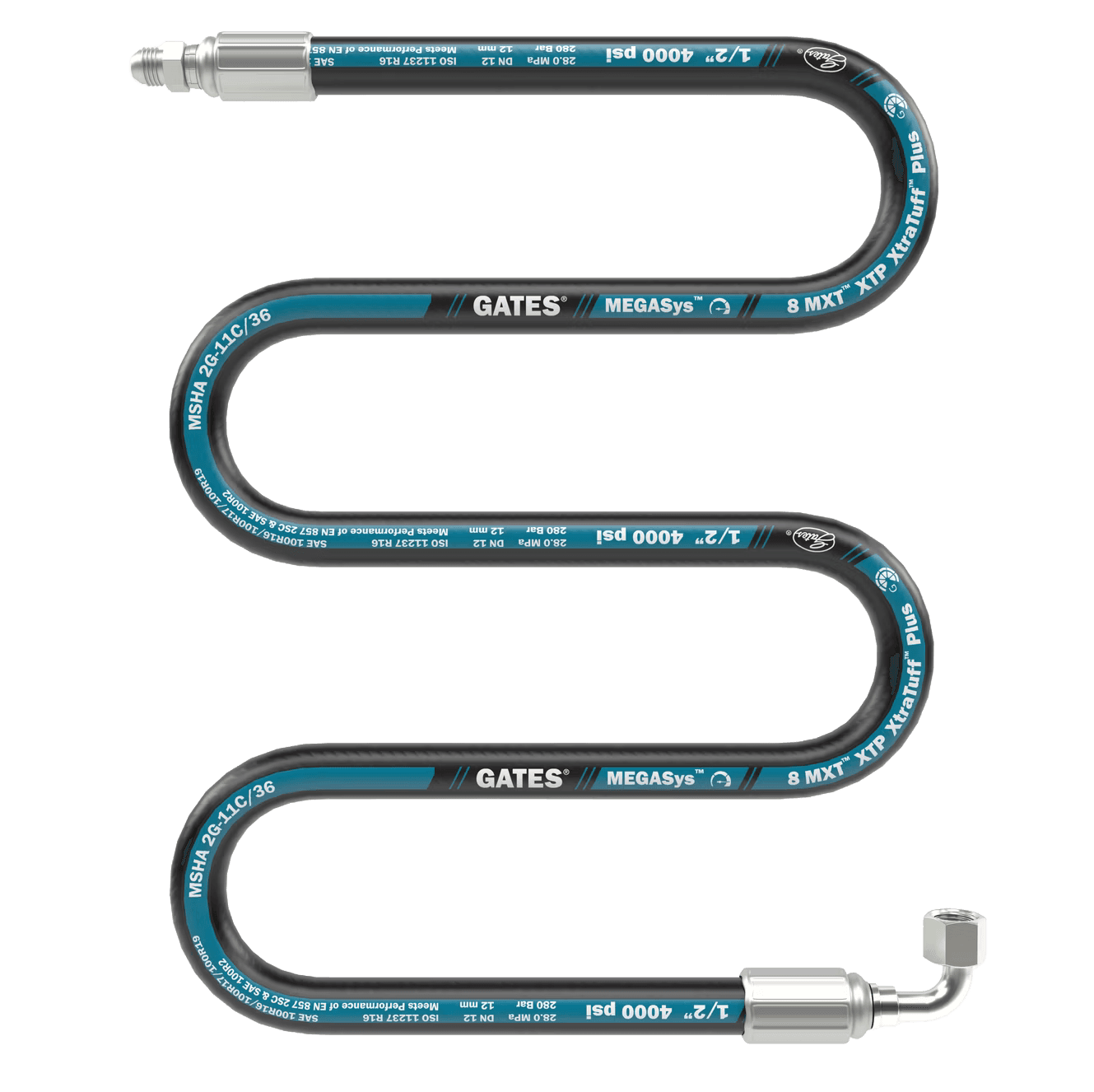

Tight bend radii across sizes for compact installation.
Reduced stiffness streamlines routing and maintenance, improving build-time ergonomics and service access.
Motion’s partnership with Gates offers product expertise and application guidance to help ensure the MXT hose range is correctly specified, matched, and installed for reliable, efficient hydraulic performance in tough conditions.
